Light-Color Display Box
Light-Temperature Light Box
I was hired by Mecca Design to create the electronics for a custom light temperature display box.
The unit was for a trade show where a chip maker was showing the quality of their light temp sensing chips.
The completed unit was shipped to Barcelona Spain to an international electronics trade show.

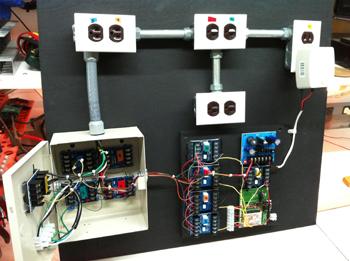

My electronic sub-assembly.
A token gets placed on a sensor that starts.......
A programmed light sequence starts while the 4 control buttons are inhibited.
Then after, the buttons control various lighting scenes for the color chip to register.

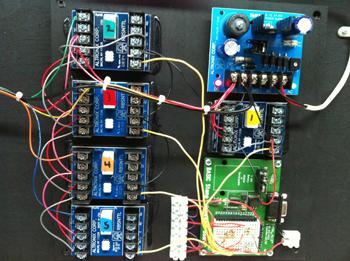

The heart of the system is the micro-controller that controls sensitive relays.

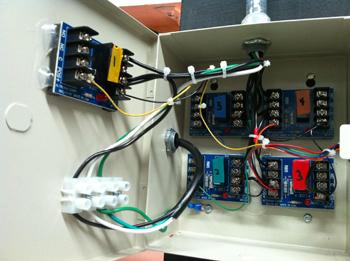

Which in turn control contactor relays.

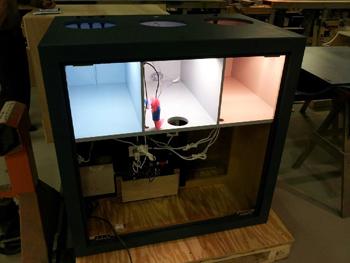

The unit shown (with the rear cover removed) displaying 3 kinds of light.
2) Office lighting
3) Indoor lighting

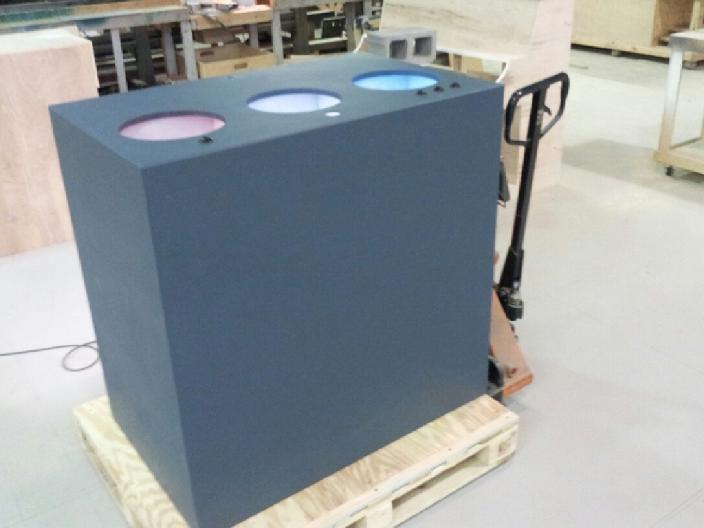

The Completed Project
...ready to go to Barcelona.
