Massive motion controls
Mecca Design is a great company to do projects for!
They always get us to build cool stuff for them to integrate into their displays.
This project was to electronically control a huge motorized display case.
The case was a row of 3 sided columns (called periactoids) that formed a row of display cases when they are all rotated to the correct face.
Two of the sides were blank and the third face was clear glass to show the displayed merchandise.
It worked like a billboard that changes itself.
The motor control had to accelerate, then continue to a pre designated point, then decelerate and then stop at exactly the right point to have them all lined up perfectly. Then it would return to the original position.
The system was automatic but in addition had to have a manual override controls.
|
My favorite part is always rounding up the parts. It's like Christmas.

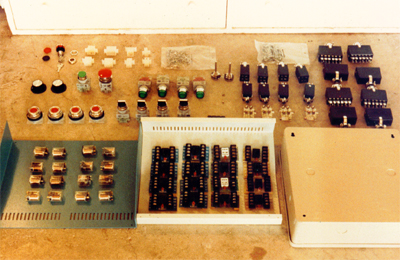

Here is what went into the manual control unit.
|

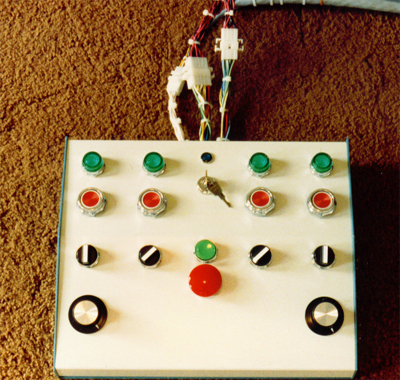

Here's the manual controller completed.
|
It all had to be modular so it could be deployed all across the country.

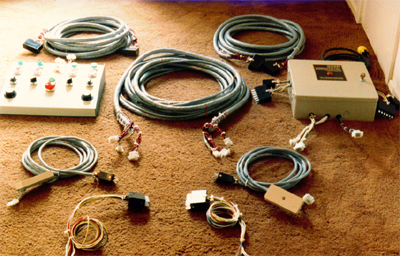

Here is a shot of the parts and color coded cables we made.
|

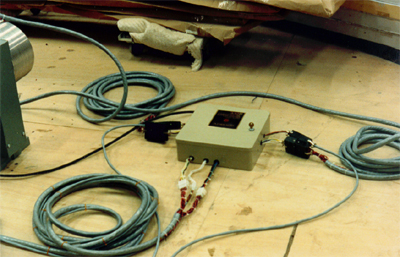

Here it is all plugged in as it passed the testing phase.
|
|
- We can do unusual projects.
- We can include motorized movements.
- We can create logical sequences including acceleration and deceleration.
- We can make extreme logical sequences with relays.
- We can build projects in modular form to ship and re-assemble elsewhere.
- We can color code module cables for easy assembly by others.
- New
- Now we can use programmable micro controllers for logical controls.
- Now we can control stepper motors for accuracy.
|
|
